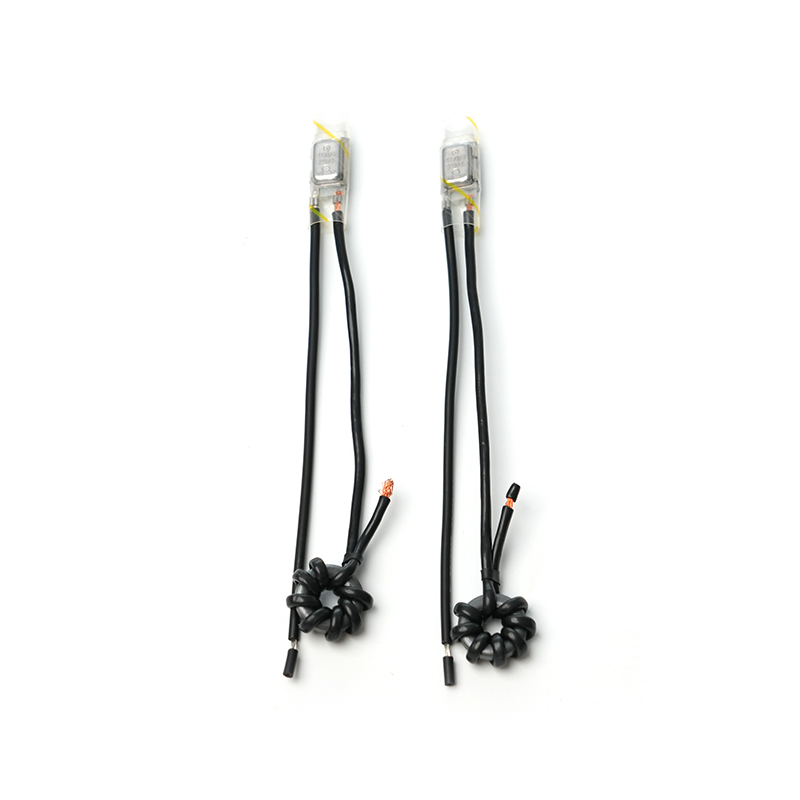

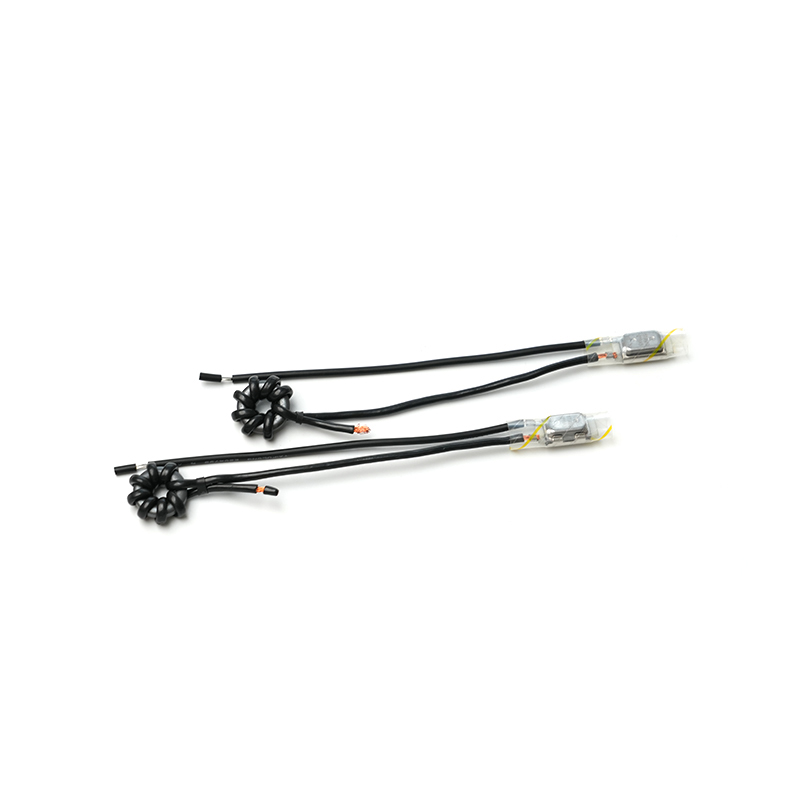

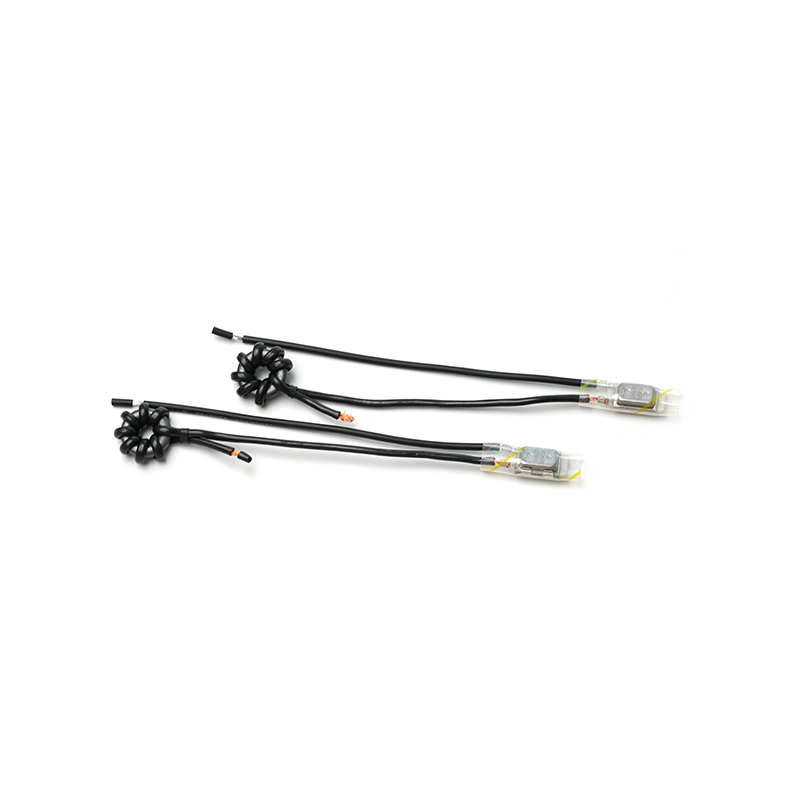

Single Phase AC Electric Motor Thermal Protection
Cycles life: 6,000 cycles is a typical value for many applications.
Open temperature: The range of 50°C to 150°C covers typical operating temperatures for motors and other devices.
Temperature Tolerance: ±5°C is a reasonable tolerance for applications.
Differential Temperature: This value is crucial and should be specified for each open temperature setting. It determines the temperature rise above the open temperature that triggers the protector.
Seal: Epoxy resin is a common and effective sealing material.
Contact resistance: ≤50 mΩ is a low resistance value, which is generally desirable for minimal power loss.
Insulation resistance: >100 MΩ is a high value, indicating good insulation quality.
Lead wire pull strength: 30 N is a reasonable value for applications.
ISO 9001and ISO14001 Certified
UL, VDE, CE CQC Approved
|
Contact capacity |
125Vac/10A, 250Vac/6A, 24Vdc/10A |
|
The bimetal carries current or not |
Not |
|
Cycles life |
6,000 cycles |
|
Open temperature |
50°C to 150°C in increments of 5°C |
|
Temperature Tolerance |
±5°C |
|
Differential Temperature |
depending on open temperature |
|
Seal |
Epoxy resin |
As China Single Phase AC Electric Motor Thermal Protection Suppliers and Custom Single Phase AC Electric Motor Thermal Protection Company,The company has a strong ability to develop, produce, and test. We have invested a lot in researching and developing new products by introducing abroad new and advanced technology, such as the automatic production line from Japan. The management system is strictly carried out according to the ISO9001. Our vision is to pursue excellence, develop the Yitong brand, obey integrity, and meet the requests of the customers. Intensify the quality monitoring and management, and proceed with normalized and standardization management. Construct the company culture and strengthen the core competitiveness.
-
